Expanded Mesh

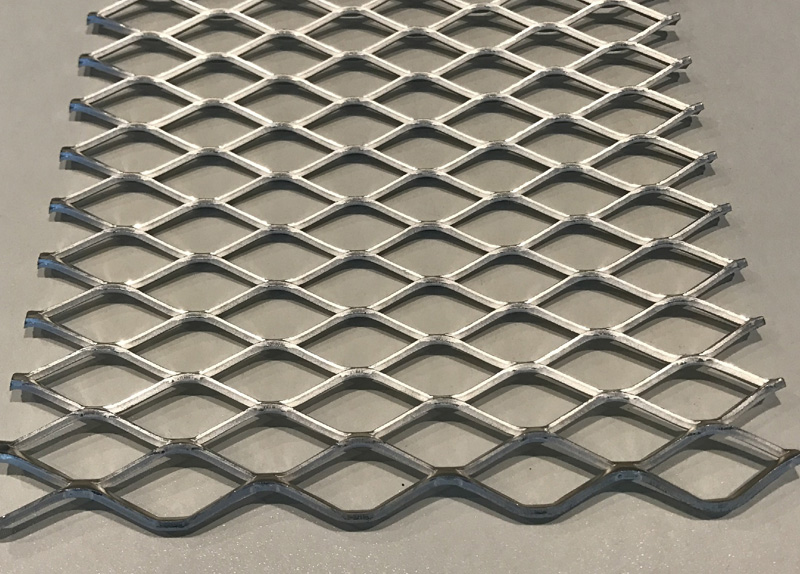

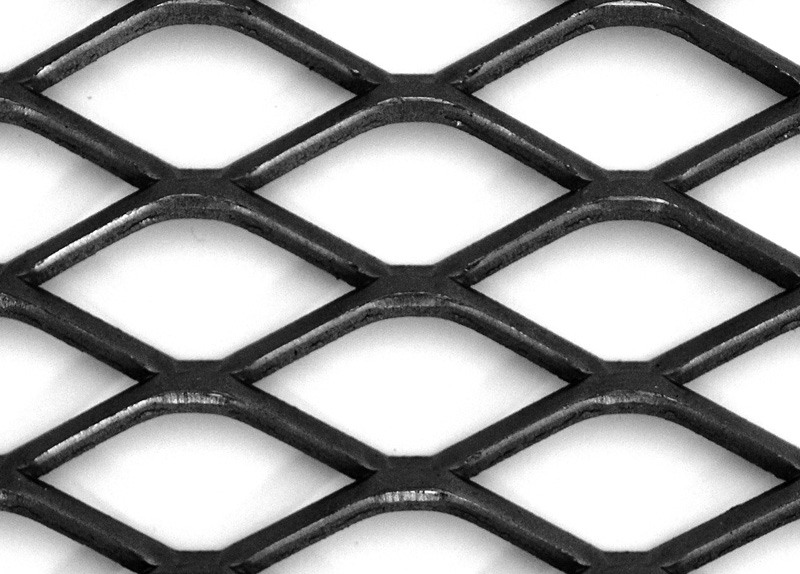

Expanded Mesh: Expanded mesh as it comes off the machine. The strands and bonds are set at a uniform angle to the plane of the sheet. This adds strength and rigidity, allows air circulation, and distributes the load on the metal to the supporting frames as well as making a skid resistant surface.

Classification :

Expanded Mesh

WhatsApp :

E-mail :

Related Products

Online Message

Carbon Steel-Standard
Specification	Design Size		Opening Strands		Size of Strands		Overall Thickness	Open Area
	Design Size		Opening Strands		Size of Strands		Overall Thickness	Open Area	(Inches)	(Inches)	(Inches)	(Inches)	(%)
		SWD	LWD	SWO	LWO	Width	Thickness
1/4" #20	0.25	1	0.125	0.718	0.072	0.036	0.135	45
1/4" #18	0.25	1	0.11	0.718	0.072	0.048	0.147	43
1/2" #20	0.5	1.2	0.438	0.938	0.072	0.036	0.14	80
1/2" #18	0.5	1.2	0.438	0.938	0.088	0.048	0.172	72
1/2" #16	0.5	1.2	0.375	0.938	0.087	0.06	0.175	65
1/2" #13	0.5	1.2	0.312	0.938	0.096	0.092	0.204	57
3/4" #16	0.923	2	0.813	1.75	0.101	0.06	0.21	78
3/4" #13	0.923	2	0.75	1.688	0.096	0.092	0.205	76
3/4" #10	0.923	2	0.75	1.625	0.144	0.092	0.29	72
(13ga)	0.923	2	0.75	1.625	0.144	0.092	0.29	72
3/4" #9	0.923	2	0.688	1.562	0.15	0.134	0.312	68
(10ga)	0.923	2	0.688	1.562	0.15	0.134	0.312	68
1" #16	1	2.4	0.938	2.062	0.087	0.06	0.192	82
1-1/2"#18	1.33	3	1.313	2.625	0.068	0.048	0.14	90
1-1/2"#16	1.33	3	1.25	2.625	0.108	0.06	0.23	85
1-1/2"#13	1.33	3	1.188	2.5	0.105	0.092	0.202	85
1-1/2"#10	1.33	3	1.188	2.5	0.138	0.092	0.284	80
(13ga)	1.33	3	1.188	2.5	0.138	0.092	0.284	80
1-1/2"#9	1.33	3	1.125	2.375	0.144	0.134	0.312	76
(10ga)	1.33	3	1.125	2.375	0.144	0.134	0.312	76
1-1/2"#6	1.33	3	1	2.313	0.203	0.198	0.433	69
(6ga)	1.33	3	1	2.313	0.203	0.198	0.433	69
2"#10	1.85	4	1.625	3.438	0.164	0.092	0.327	82
(13ga)	1.85	4	1.625	3.438	0.164	0.092	0.327	82

Stainless Steel-Standard
Specification	Design Size		Opening Strands		Size of Strands		Overall Thickness	Open Area
	Design Size		Opening Strands		Size of Strands		Overall Thickness	Open Area	(Inches)	(Inches)	(Inches)	(Inches)	(%)
		SWD	LWD	SWO	LWO	Width	Thickness
1/4" #18	0.25	1	0.12	0.62	0.087	0.05	0.15	30
1/2" #18	0.5	1.2	0.437	0.937	0.087	0.05	0.164	70
1/2" #16	0.5	1.2	0.437	0.937	0.087	0.062	0.164	70
1/2" #13	0.5	1.2	0.325	0.875	0.119	0.093	0.225	70
3/4" #18	0.923	2	0.812	1.75	0.106	0.05	0.2	85
3/4" #16	0.923	2	0.812	1.75	0.106	0.062	0.202	83
3/4" #13	0.923	2	0.75	1.687	0.107	0.093	0.202	80
3/4" #9	0.923	2	0.687	1.562	0.152	0.16	0.14	67
(10ga)	0.923	2	0.687	1.562	0.152	0.16	0.14	67
1-1/2"	1.333	3	1.25	2.75	0.115	0.062	0.222	85
#16	1.333	3	1.25	2.75	0.115	0.062	0.222	85
1-1/2"	1.33	3	1.25	2.625	0.115	0.093	0.222	83
#13	1.33	3	1.25	2.625	0.115	0.093	0.222	83
1-1/2"#9	1.333	3	1.125	2.5	0.144	0.134	0.312	76
(10ga)	1.333	3	1.125	2.5	0.144	0.134	0.312	76

Aluminum-Standard
Specification	Design Size		Opening Strands		Size of Strands		Overall Thickness	Open Area
	Design Size		Opening Strands		Size of Strands		Overall Thickness	Open Area	(Inches)	(Inches)	(Inches)	(Inches)	(%)
		SWD	LWD	SWO	LWO	Width	Thickness
1/2" .051	0.5	1.2	0.375	0.937	0.093	0.051	0.158	65
1/2" .081	0.5	1.2	0.375	0.937	0.093	0.081	0.186	60
3/4" .051	0.923	2	0.813	1.175	0.109	0.051	0.2	78
3/4".081	0.923	2	0.75	1.68	0.129	0.081	0.22	76
(Lt.)	0.923	2	0.75	1.68	0.129	0.081	0.22	76
3/4".081	0.923	2	0.75	1.68	0.165	0.081	0.3	69
(Lt.)	0.923	2	0.75	1.68	0.165	0.081	0.3	69
3/4".125	0.923	2	0.688	1.68	0.169	0.125	0.305	68
1-1/2".081	1.333	3	1.188	2.5	0.128	0.081	0.24	85
1-1/2".125	1.333	3	1.188	2.5	0.162	0.125	0.3	79
